Industrial UV LED Curing Chamber for Endoscope & Hearing Aid Manufacturing

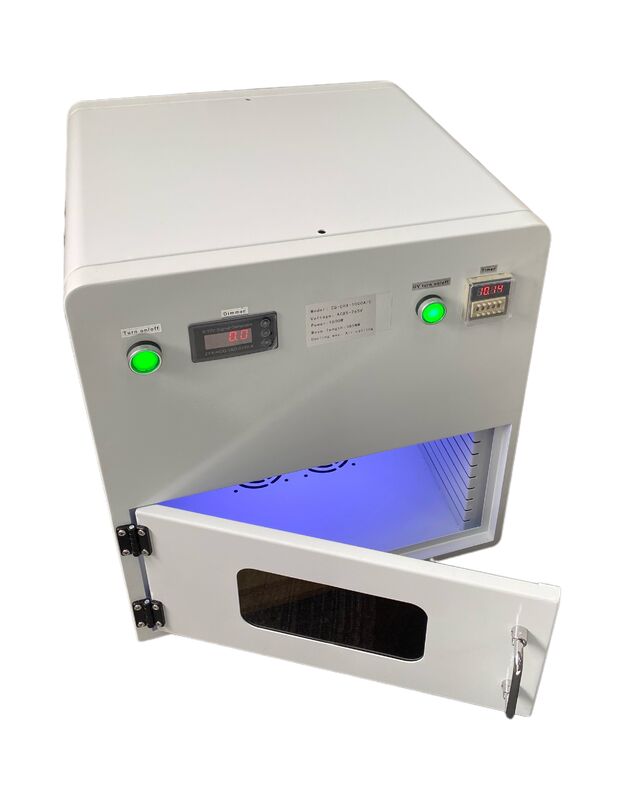

Großes Bild : Industrial UV LED Curing Chamber for Endoscope & Hearing Aid Manufacturing

Produktdetails:

Herkunftsort:	China
Markenname:	CG
Zertifizierung:	CE*RoHS
Modellnummer:	CG-CHX-300*300 mm -1000a/c

Zahlung und Versand AGB:

Min Bestellmenge:	1 Satz
Preis:	1800usd 1 set
Verpackung Informationen:	Holzkiste
Lieferzeit:	10-15 Werktage
Zahlungsbedingungen:	L/C, T/T
Versorgungsmaterial-Fähigkeit:	10 Set/Tag

Kontakt

Industrial UV LED Curing Chamber for Endoscope & Hearing Aid Manufacturing

Beschreibung

Stichwort:	UV -Härtungskammer	Leistung:	1000W
Eingangsspannung:	AC85-265V	Wellenlänge:	365/385/395/405 nm
Kühlweg:	Luftkühlung	UV -Intensität:	2W/cm2
Garantie:	1 Jahre	Paket:	Holzkiste
Hervorheben:	Industrial UV LED curing chamber , UV curing chamber for endoscopes , Hearing aid manufacturing UV chamber

Industrial UV LED Curing Chamber for Endoscope & Hearing Aid Manufacturing

Precision UV Adhesive Curing Solution for Medical Device Assembly

The Super Curing Industrial UV LED Curing Chamber is designed to provide high-precision, low-temperature UV curing for the assembly of medical endoscopes, hearing aids, cochlear implant components, and other miniature medical devices. Equipped with advanced UV LED technology, the system delivers uniform UV irradiation, programmable curing parameters, and stable energy output to ensure reliable bonding without damaging delicate medical-grade materials.

Compared with conventional mercury UV systems, the Super Curing UV LED Chamber offers instant start-up, lower heat generation, longer service life, and consistent curing performance, making it the ideal solution for medical manufacturers seeking higher production efficiency, improved product quality, and strict process repeatability.

Whether used in cleanrooms, R&D laboratories, or automated production lines, our UV curing chamber helps manufacturers meet the demanding quality standards of modern medical device production.

UV Curing Chamber Specifications

Model	CG-CHX-300*300mm -1000A/C	Lamp Color	White/black
Power	1000W	Chip Brand	LG/Seoul
Input Voltage	AC85-265V	Wavelength	365/385/395/405nm
Application	UV ink/varnish/coating/adhesive curing	Life Span	20000H
Cooling Way	Air cooling	Emitting Window Size	300*300mm
UV Intensity	2W/CM²	Dimmable	0%-100%
Best Emitting Distance	30-50mm	Package	Wooden case

UV Curing Chamber Advantages

Energy-saving, normally 1000W LED UV equals to 6000W mercury lamp drying effect
Environment friendly, No mercury. No ozone making and VOC discharge
No warm-up, turn on/off instantly
Low temperature, can be used for PE and film ink curing
Long lifespan, 10000 hours

Product Features

Precision Optical System

Engineered optical lenses deliver highly uniform UV distribution for consistent adhesive curing.

Intelligent Touch Screen Control

Easy operation with programmable curing recipes and real-time monitoring.

Functions include:

Timer setting
Intensity adjustment
Recipe storage
Production counter
System diagnostics

Efficient Air Cooling System

Advanced forced-air cooling maintains stable operating temperatures for continuous production without overheating.

Multiple UV Wavelength Options

Available wavelengths include:

365nm/385nm/395nm/405nm

Customized wavelengths are available for specific UV adhesive formulations.

Applications

Medical Endoscope Manufacturing

Suitable for precision bonding of:

Endoscope objective lenses
Optical fiber assemblies
CMOS camera modules
Protective windows
Light guide bonding
Distal tip assembly
Catheter visualization systems

Hearing Aid Manufacturing

Ideal for:

Shell bonding
Receiver fixation
Microphone assembly
Sound tube bonding
Transparent housing assembly
Battery compartment sealing
Waterproof adhesive curing

Medical Optical Devices

Applicable for:

Surgical imaging systems
Medical cameras
Diagnostic equipment
Fiber optic connectors
Optical sensors

Wearable Medical Electronics

Supports manufacturing of:

Smart hearing devices
Medical monitoring devices
Wearable diagnostic equipment
Portable healthcare electronics

UV Curing Chamber FAQ

Q1: What's the wavelength of the LED UV lamp?

A1: Usually 395-405nm. The 395nm/385nm is used for printing machine, 365 nm is for adhesive.

Q2: What's your LED brand?

A2: LG/Seoul

Q3: What's the material of lamp and lens?

A3: Aluminium/quartz

Q4: What's the cooling way for the LED UV curing system?

A4: Water or air cooling

Q5: The UV intensity can be changed?

A5: Yes, the UV intensity is changeable from 0%-100%

Q6: What's the max energy of UV LED lamp?

A6: It depends on emitting time, the longer the higher energy output total amount.

Q7: What's the lifespan of the UV LED curing lamp?

A7: Our warranty is 2 years for all system (Chiller/power supply) mostly can reach 5 years.

Why Choose Super Curing?

13+ Years of UV LED Curing Experience
Custom UV Solutions for Industrial Manufacturing
Fast Sample Testing & Process Validation
Global OEM & ODM Support
CE & RoHS Certified Products
Experienced Engineering Team
Worldwide Technical Support
Rapid Delivery for Standard Models

Request a Custom UV Curing Solution

Whether you are developing next-generation micro speakers, MEMS acoustic devices, TWS earphones, or other precision electronic assemblies, Super Curing provides tailored UV LED curing solutions designed to maximize production efficiency and product reliability.
